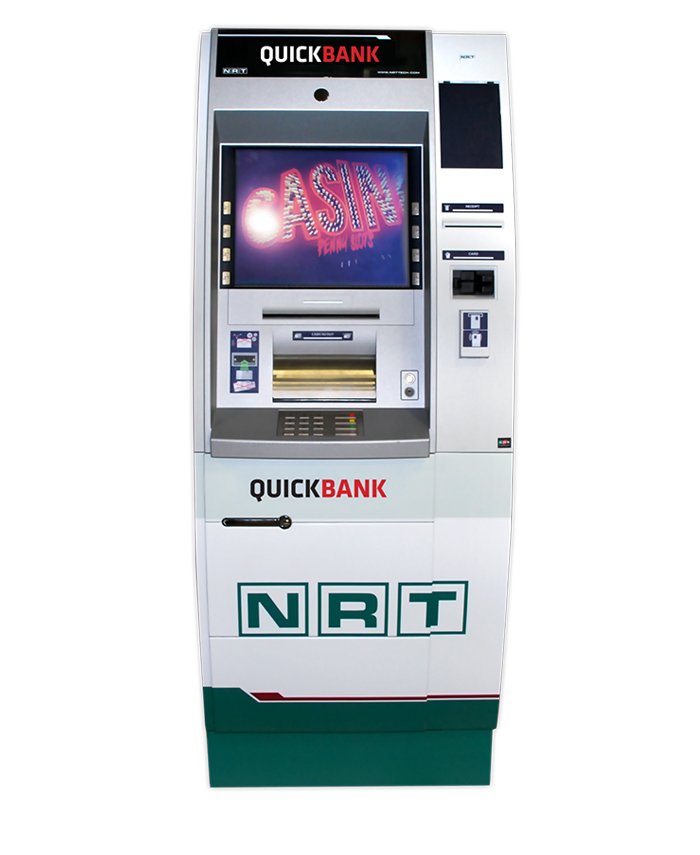

QuickBank is the next generation of cage automation using a revolutionary high capacity cash recycling technology, coupled with several choices of coin handling devices, employees can withdraw and deposit floats and wallets automatically. With QuickBank, you can expect:
• Reduced labor costs by automating cash handling
• Increase cash utilization ratio by customizing floats and wallet size
• Increase time on floor by reducing time spent on pre-shift and post-shift routines
• Improve security and eliminate shrinkage

  • Indoor, frontload, free standing
  • Recycling Module:
    • 8 cassettes: 4 large (up to 2500 notes each), 4 small (up to 1500 notes each)
    • Separate reject/retract cassettes up to 3 compartments
    • Separate counterfeit notes compartment
    • Deposit/Withdraw up to 200 notes per bundle
    • Foreign object detection in input/output tray
    • Recycles up to 7 denominations
    • 10 banknotes per second
    • Banknote validation
    • Fit/unfit test
    • Multiple currencies, up to 120 denomination simultaneously
  • 17” TFT LCD Display, touch screen, tiltable for service
  • 8 softkeys
  • EPP V6 PIN pad
  • Hybrid DIP card reader – EMV 4.x Level 1 certified
  • Hybrid motorized card reader (optional)
  • Contactless card reader (optional)
  • Thermal receipt printer
  • UL 291
  • Mechanical safe lock
  • Electronic safe lock (optional)
  • Awareness mirrors
  • Cash removal, portrait and ID card unit camera (optional)
  • 2D Barcodes scanner (optional)
  • Uninterruptable Power Supply
  • Speakers, headphone jack
  • Illuminated advertising light box
  • Customers guided by optical indicators in all input / output module

Dimensions (QuickBank only)

  • H x W x D (mm) 1556 x 600 x 1272
  • H x W x D (in) 61.26 x 23.62 x 50.08
  • Weight 870 Kg (1918.02 lb)

Power Supply

  • 110-220V; 220-240V
  • Nominal frequency: 50/60 Hz

Loose Coin Dispensing Upgrade Kit (Optional)

  • Field upgradable option. Installed inside QuickBank
  • Up to 4 coins per second
  • Up to 8 denomination
  • 4 coin hoppers
  • 8 coin hoppers (coming soon)
  • Hopper capacity:
    • US Penny
    • US Nickel
    • US Dimes
    • US Quarter



Coin Roll Dispenser Side Car (Optional)

  • Frontloading, free standing
  • Field upgradable option. Side car is Install on right side.
  • Expandable from Single width to Double width
  • Single width: 2 Coin roll dispenser cassettes, up to 4
  • denomination
  • Double width: 4 Coin roll dispenser cassettes, up to 8
  • denomination (available June 2016)
  • Cassette capacity:
    • US Pennies roll
    • US Nickels roll
    • US Dimes roll
    • US Quarters roll
  • Single width H x W x D (in): 61.267 x 15.28 x 42.193
  • Double width H x W x D (in): 61.267 x 30.6 x 42.193



Bulk Coin Acceptance Side Car (Optional)

  • Field upgradable option. Side Car is install on left side
  • Mixed coins deposit
  • 2-steps coin validation process
  • 6 deposit box, mixed coins
  • Up to 20kg of coins in each, 120kg coins total
  • Dual conveyor design for increased speed and redundancy, up to 16 coins per second.
  • Escrow capability
  • Foreign objects and debris separation and return
